Sauer HMM-20,HMM-32,HMM-40,HMM-50 Hydraulic Orbit Motors
-
Place of Origin:Germany
Model Number: HMM-8, HMM-12.5,HMM-20,HMM-32,HMM-40,HMM-50
Brand Name:Replace
Sauer Hydraulic Orbit Motor
Warranty:1 Year
Condition:original new motor
Delivery Time: 10- 25 days
Supply Ability: 12PCS in 30days
Origin：China
Minimum Order：1 Pieces
Sample:Contact us for free samples
Price:$79.45-$109.58
Product Description
Gerotor motor HMM series features:
- HMM series is a mini -motor with high speed
- Small volume.
- High efficiency.
- Low noise.
- Compact design of spool and gear set , which provide mini volume, high power and low weight..
- Credible design for shaft seal , which can bear High Pressure.
- Direction of shaft rotation and speed can be controlled easily and smoothly.
Product Name:Cycloid Hydraulic Motor-HMM series
HMM series motor is minimotor with high speed, very compact design,spool valve,economical type motor.
Characteristic features：
1. Compact design of spool and gear set, which provide mini volume, high power and low weight.
2. Credible design for shaft seal , which can bear high pressure and be used in parallel or in series.
3. Direction of shaft rotation and speed can be controlled easily and smoothly.
Type:
HMM-8, HMM-12.5,HMM-20,HMM-32,HMM-40,HMM-50
1. Figuration : A-oil port on the bottom,B-oil port on the side
2. Displacemet (ml/r):A-8,B-12.5,C-16,D-20,E-32,F-40,G-50

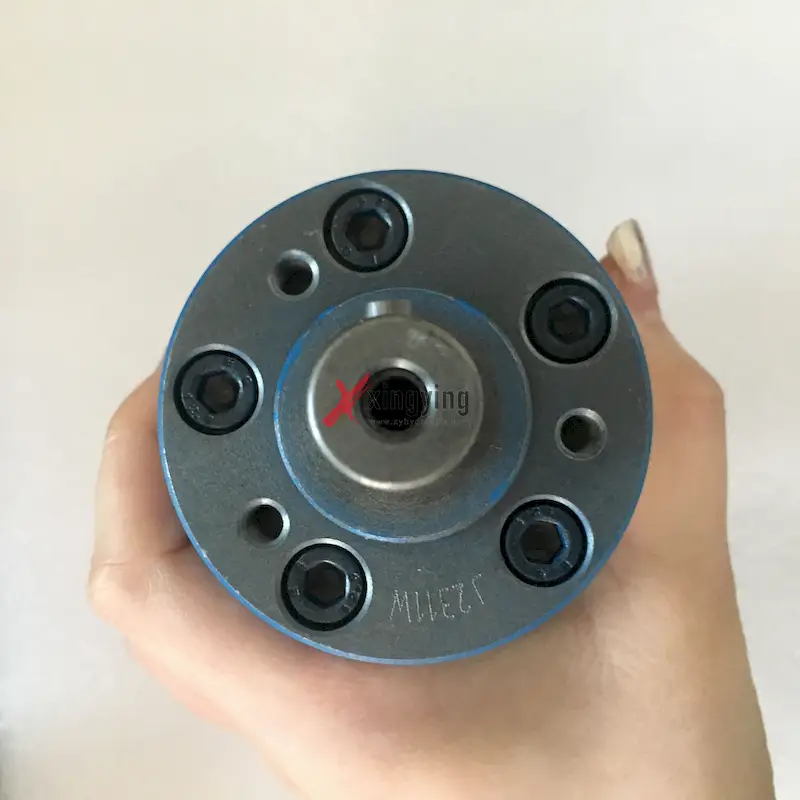

3. Flange&Pilot (mm) :
A-circle-flange,3-M6 bolts distributing circle ￠45, pilot ￠31.5X5
B-circle-flange,3-1/4-28UNF bolts distributing circle ￠45,pilot ￠31.5X5
C-rhombus flange,2-￠9 center space 80, pilot ￠63X2
4. Shaft&key (mm):
A-cyLinder shaft;￠16X28.5 parallel key:5x5x16 link thread :M6
B-cylinder shaft; ￠15.875X28.5, parallel key:4.8x4.8x19.35, link thread :1/4-28UNF-2B
C-Involute splind shaft:B17x14 DIN5482, Link thread :M6
5. Oil port :A-2-G3/8 ,B-9/16-18UNF
6. Drain port: A-None,B-G1/8 ,C-3/8-24UNF
7. Special : A-None
Product Complete Model No.
OMM/OML/HMM/BMM Orbital Hydraulic Motor | |||||||
Displacement(ml/r) | 8 | 12.5 | 20 | 32 | 40 | 50 | |
Flow(LPM)
| Continuous | 16 | 20 | 20 | 20 | 20 | 20 |
Intermittent | 20 | 25 | 25 | 25 | 25 | 25 | |
Speed(RPM)
| Continuous | 1950 | 1550 | 1000 | 630 | 500 | 400 |
Intermittent | 2450 | 1940 | 1250 | 800 | 630 | 500 | |
Pressure(Mps) | Continuous | 10 | 10 | 10 | 10 | 9 | 7 |
Intermittent | 14 | 14 | 14 | 14 | 14 | 14 | |
Torque(N*m)
| Continuous | 11 | 16 | 25 | 40 | 45 | 46 |
Intermittent | 15 | 23 | 35 | 57 | 70 | 88 | |
Note: 1. Continuous data: the max. value of operating motor continuously.
2. Intermittent dada: the max. value of operating motor in 6 secends per minute.
3. A simultaneous max. RPM and max. pressure is not recommended.
4. Optimum operating situation should be at the 1/3-2/3 of the continuous operating situation.
