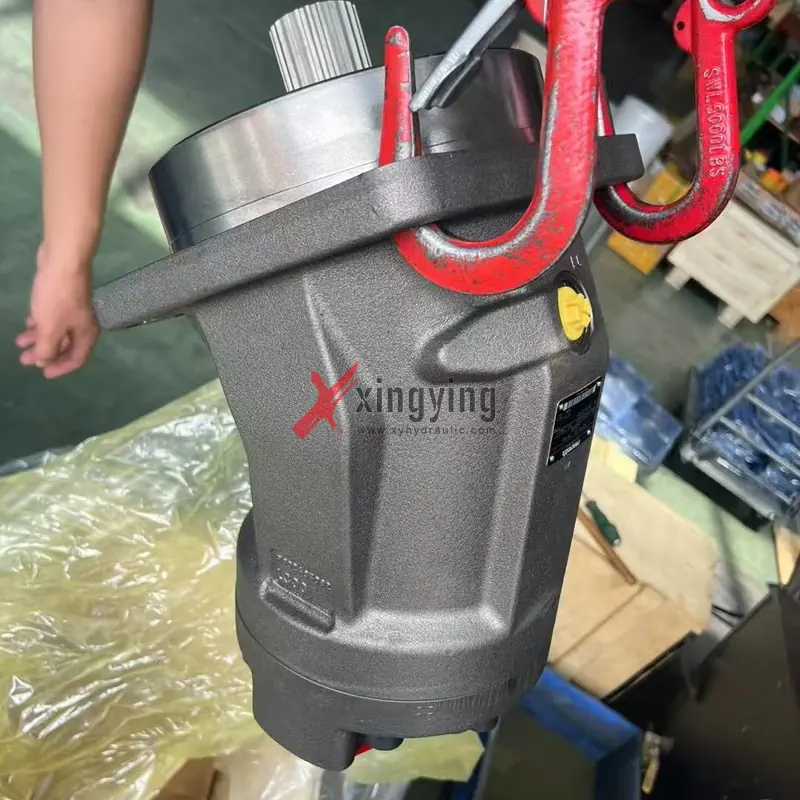

Rexroth A2FM45/61W-VAB100-S R902160921 Axial Piston Motor
-
Model Number: A2FM45/61W-VAB100-S
Brand Name:Replacement Rexroth
All-purpose high pressure motor
Size 5 … 1000
Nominal pressure up to 400 bar
Maximum pressure up 450 bar
Open and closed circuit
Metric version
Warranty:1 Year
Condition:New
Delivery Time: 30 days
Origin:China
Minimum Order:1 Pieces
Sample:Contact us for free samples
Price:$684.59-$1645.23
- Rexroth A2FM56/61W-VAB020 R992001776 Axial Piston Motor Rexroth A2FM45/61W-VAB100-S R902160921 Axial Piston Motor Rexroth A2FM32/61W-VAB010H R992001012 Axial Piston Motor Rexroth A2FM63/61W-VAB100 A2FM63/61W-VAB020 A2FM63/61W-VAB027 Axial Piston Motor
Product Description
Rexroth A2FM32/61W-VAB010H A2FM45/61W-VAB100-S A2FM56/61W-VAB020 A2FM63/61W-VBB100 A2FM63/61W-VAB027-Y Original hydraulic piston motor
The A2FM is a fixed motor with an axial tapered piston rotary group with a bent-axis design for hydrostatic drives in open and closed circuits. In axial piston units with a bent-axis design, the pistons are arranged at an angle to the drive shaft. The pistons rest directly on the drive shaft where they generate torque depending on the pressure.
High power density
Very high total efficiency
High starting efficiency
Robust 40° bent-axis technoLogy
Product family | A2FM |
Type of actuation | Motor |
Size (displacement) [cm³] | 32 |
Series | 61 |
Direction of rotation | alternating |
Sealing material | FKM |
Low temperature version | no |
Shaft end | A (splined shaft DIN 5480) |
Mounting flange | 4-hole ISO 3019-2 |
Working ports | 01 (port A, B;SAE rear) |
Speed sensing | without |
Pressure Relief valve | without |
Rotary group, hydraulic part | Standard |
Drive shaft bearing | Standard bearing |
Shaft seal ring | Standard WDR |
Housing ports | Leakage oil port T1 |
Housing ports, status | Leakage oil port T1 plugged |
Installation version of port plate | Installation version 1 (standard) |
Fixing screws | Standard |
Port plate | A-Standard |
Max. flow [l/min] | 0.0 |
Classification society (external) | Standard (without acceptance) |
Test certificate | without |
Test certificate language code | Without |
Paint/base coat | RAL 9005 deep black |
Paint/top coat | without |
Weight [kg] | 11.4 |
Literature
Product Tags
PROVIDING EXCELLENT SOLUTIONS BY XingYing Hydraulic
When seeking manufacturers and suppliers for Rexroth A2FM45/61W-VAB100-S R902160921 Axial Piston Motor, choosing XingYing Hydraulic is your wise decision.
We pride ourselves on high quality, diverse options, competitive pricing, and swift delivery.
Engage with our experts now to explore further insights into our Rexroth A2FM45/61W-VAB100-S R902160921 Axial Piston Motor product solutions.
