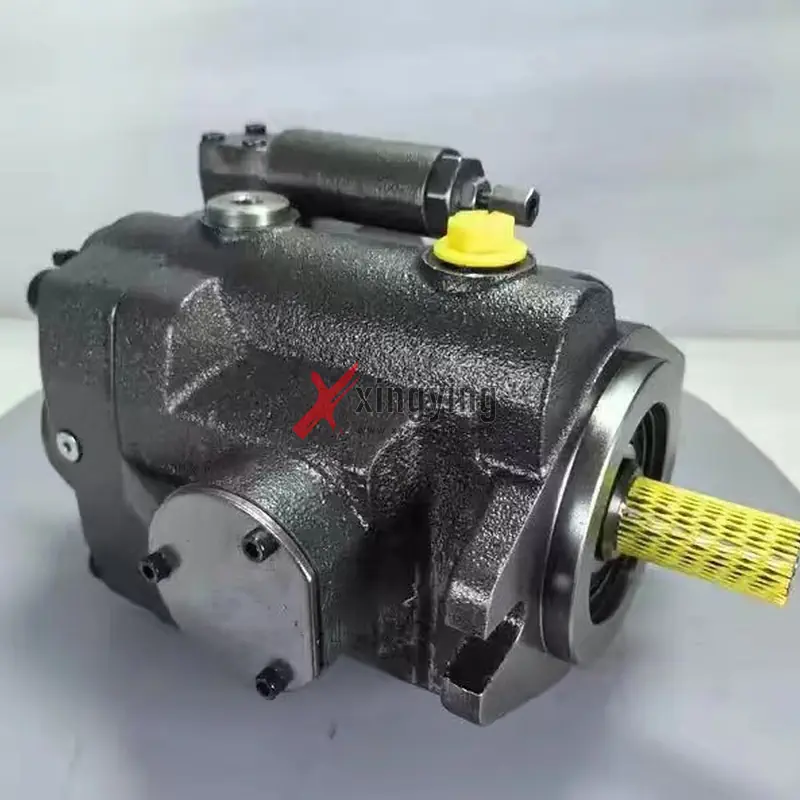

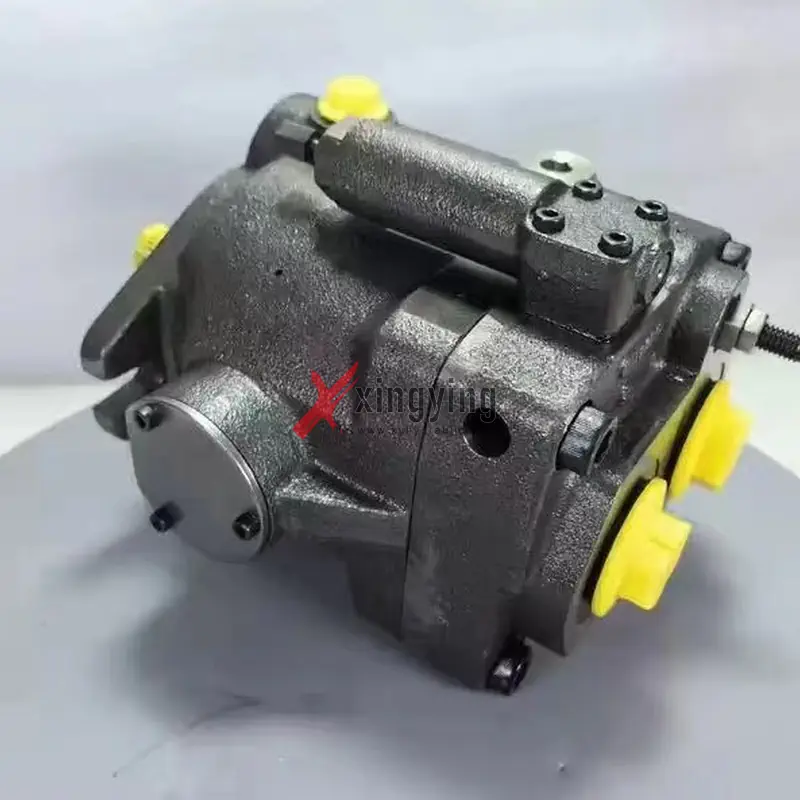

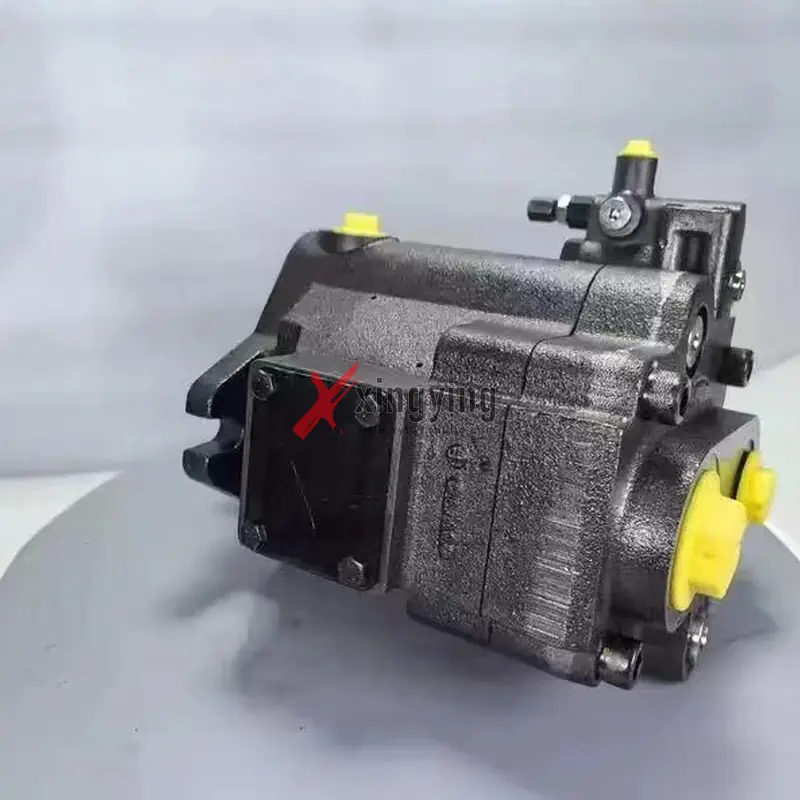

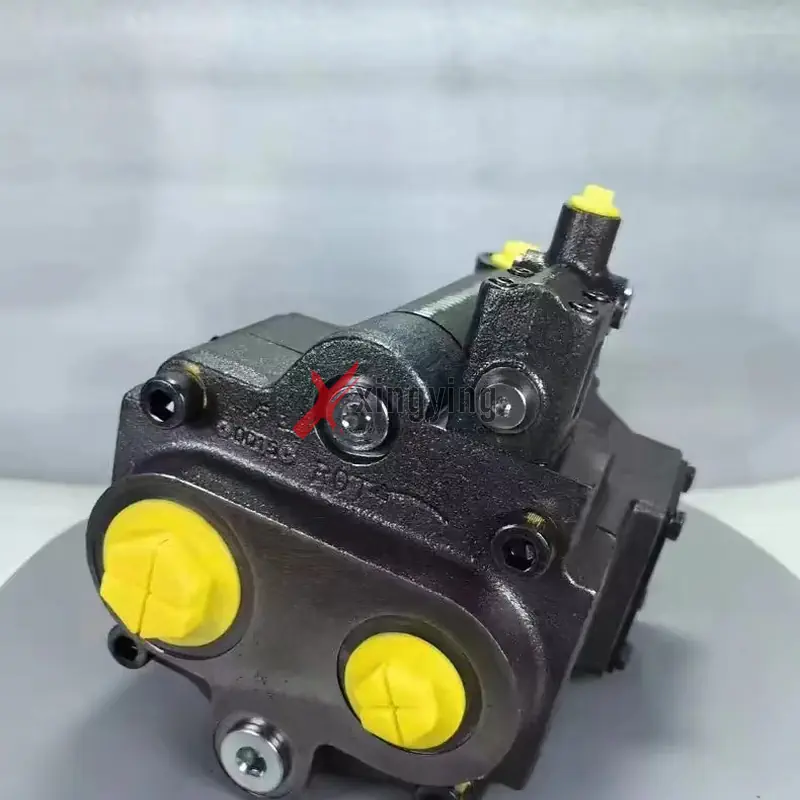

Parker PVP4136C9R211 PVP4836R2H21 PVP Series Pump
-
Model Number:PVP4136C9R211 PVP4836R2H21
Nominal Displacement:16 23 33 41 48ml/R
Rated Pressure:25mpa
Maximum Pressure:35mpa
Rated Speed:2400-3000r/Min
Speed Range:600-3000r/Min
Brand Name:Replacement Parker PVP Series Pump
Warranty:1 Year
Delivery Time: 7-25days
Origin：China
Minimum Order：1 Pieces
Sample:Contact us for free samples
Price:$857.14-$1428.56
Product Description
Parker PVP4136C9R211 PVP4836R2H21 PVP Series Pump
Variable Volume Displacement Piston Pump, Operating Pressure of 3,600 psi.
The PVP Series provides durable variable volume Piston Pumps for medium pressure applications. With aa pressure rating of 3,600 psi and a wide range of controls, PVP pumps are efficient and reliable. The PVP Series is flexible and high-performing, resulting in increased uptime with fast and reliable variable volume pumps engineered for medium pressure applications. PVP pump feature thru-shaft capability and high-strength construction for greater productivity, while improving the work environment with reduced noise levels and easy-to-service components.
Key Features:
- Maximum operating pressure of 250 bar (3,600 psi)
- Maximum speed of 2,400 rpm
- Temperature range of -40 to 122 ºF (-40 to 50ºC)
| Body Material | Cast Iron | - |
| Case Drain Option | Yes | - |
| Charge Pump Option | No | - |
| Circuit Type | Open | - |
| Configuration | Single/Tandem/Multiple | - |
| Control Method | Pressure limiter / Load sense | - |
| Energy Recovery Capable | No | - |
| Filtration Option | No | - |
| Fluid Type | Standard Hydraulic Fluid | - |
| Maximum Displacement | 48 cm³/rev | 2.9 in³/rev |
| Maximum Flow | 30.4 GPM | 115 LPM |
| Min./Max. Fluid Temperature | -40°C to 50°C | -40 ºF to 122°F |
| Maximum Noise Level | 76 DBA | - |
| Max. Operating Pressure (continuous) | 250 bar | 3600 psi |
| Maximum Speed (RPM) | 2400 | - |
| Min./Max. Viscosity (SUS) | NA | NA |
| Max. Weight | NA | NA |
| Media | Hydraulic | - |
| Mounting Option | SAE | - |
| Port Connection | SAE | Flange, Straight Thread |
| Porting Location | Side ports, rear ports, opposing ports | - |
| Pump TechnoLogy | Piston | - |
| Rotation | Clockwise, counter clcokwise | - |
| Shaft Type | SAE | - |
| Thru-drive Capability | Yes | - |
Product Image Gallery
Product Complete Model No.
| PVP41362L211 |
| PVP41362L26A211 |
| PVP41362L26A411 |
| PVP41362L2A11 |
| PVP41362L2HLM11 |
| PVP41362L2HLMV11 |
| PVP41362L6A411 |
| PVP41362R11 |
| PVP41362R211 |
| PVP41362R26A211 |
| PVP41362R2A11 |
| PVP41362R2H11 |
| PVP41362R2HLM11 |
| PVP41362R2M11 |
| PVP41362R2P11 |
| PVP41362R2V11 |
| PVP41362RH11 |
| PVP41362RHLM11 |
| PVP41362RM11 |
| PVP41362RV11 |
| PVP41363R26A1VH10 |
| PVP41363R26A411 |
| PVP41363R26B111 |
| PVP41363R6A211 |
| PVP41363R6A2M11 |
| PVP41363R6A411 |
| PVP41363R6A4H11 |
| PVP41363R6A4MV11 |
| PVP41363R6B111 |
| PVP41363R6B1A11 |
| PVP41363R6B1P11 |
| PVP41363R6B311 |
| PVP41368R2P11 |
| PVP41368RAP11 |
| PVP41369L29B3A11 |
| PVP41369L2A11 |
| PVP41369L2AV11 |
| PVP41369L2M11 |
| PVP41369R211 |
| PVP41369R29A411 |
| PVP41369R2A11 |
| PVP41369R2H11 |
| PVP41369R2M11 |
| PVP41369R2ME11 |
| PVP41369R2MP11 |
| PVP41369RH11 |
| PVP41369RP11 |
| PVP4136C3R26B1M11 |
| PVP4136C3R26B211 |
| PVP4136C3R26B311 |
| PVP4136C3R6A111 |
| PVP4136C3R6A1A11 |
| PVP4136C3R6A2A11 |
| PVP4136C3R6A4M11 |
| PVP4136C3R6B111 |
| PVP4136C3R6B211 |
| PVP4136C9R211 |
| PVP4136C9R29C3MD11 |
| PVP4136C9R2H11 |
| PVP4136C9R2M11 |
| PVP4136C9R9B311 |
| PVP4136C9R9B411 |
| PVP4136C9RHLA11 |
| PVP4136C9RM11 |
| PVP4136D2L11 |
| PVP4136D2R11 |
| PVP4136D2R26A4M11 |
| PVP4136D2R26B4A11 |
| PVP4136D2R2A11 |
| PVP4136D2R6A211 |
| PVP4136D2R6A4A11 |
| PVP4136D2R6A4AP11 |
| PVP4136D2R6A4C11 |
| PVP4136D2R6A4M11 |
| PVP4136D2R6A4MP11 |
| PVP4136D2R6B1M11 |
| PVP4136D2R6B4A11 |
| PVP4136D2R6B4AP11 |
| PVP4136D2RA11 |
| PVP4136D2RAP11 |
| PVP4136D3L6A2A11 |
| PVP4136D3L6A4A11 |
| PVP4136D3LA11 |
| PVP4136D3R6A111 |
| PVP4136D3R6B3P11 |
| PVP4136D3RA11 |
| PVP4136D9L2A11 |
| PVP4136D9LA11 |
| PVP4136D9R211 |
| PVP4136D9R29B311 |
| PVP4136DL211 |
| PVP4136DLC11 |
| PVP4136DR211 |
| PVP4136DRA11 |
| PVP4136DRAP11 |
| PVP4136DRC11 |
| PVP4136DRM11 |
| PVP4136DRP11 |
| PVP4136K9L2A11 |
| PVP4136K9L2M11 |
| PVP4136K9R11 |
| PVP4136K9R211 |
| PVP4136K9R29A4A11 |
| PVP4136K9R29A4M11 |
| PVP4136K9R29B311 |
| PVP4136K9R29B3A11 |
| PVP4136K9R29B4M11 |
| PVP4136K9R2A11 |
| PVP4136K9R2C11 |
| PVP4136K9R2H11 |
| PVP4136K9R2M11 |
| PVP4136K9R2V11 |
| PVP4136K9R9A4C11 |
| PVP4136K9R9B3A11 |
| PVP4136K9RA11 |
| PVP4136K9RHLA11 |
| PVP4136K9RM11 |
| PVP4136L11 |
| PVP4136L211 |
| PVP4136L2A11 |
| PVP4136L2AV11 |
| PVP4136L2M11 |
| PVP4136L2P11 |
| PVP4136L2VH10 |
| PVP4136L2VM11 |
| PVP4136LA11 |
| PVP4136LP11 |
| PVP4136R11 |
| PVP4136R211 |
| PVP4136R2A11 |
| PVP4136R2H11 |
| PVP4136R2HLM11 |
| PVP4136R2M11 |
| PVP4136R2ME11 |
| PVP4136R2MP11 |
| PVP4136R2P11 |
| PVP4136R2V11 |
| PVP4136R2VM11 |
| PVP4136RA11 |
| PVP4136RAP11 |
| PVP4136RC11 |
| PVP4136RH11 |
| PVP4136RHP11 |
| PVP4136RM11 |
| PVP4136RP11 |
| PVP4136RV11 |
Literature
Product Tags
PROVIDING EXCELLENT SOLUTIONS BY XingYing Hydraulic
When seeking manufacturers and suppliers for Parker PVP4136C9R211 PVP4836R2H21 PVP Series Pump, choosing XingYing Hydraulic is your wise decision.
We pride ourselves on high quality, diverse options, competitive pricing, and swift delivery.
Engage with our experts now to explore further insights into our Parker PVP4136C9R211 PVP4836R2H21 PVP Series Pump product solutions.
