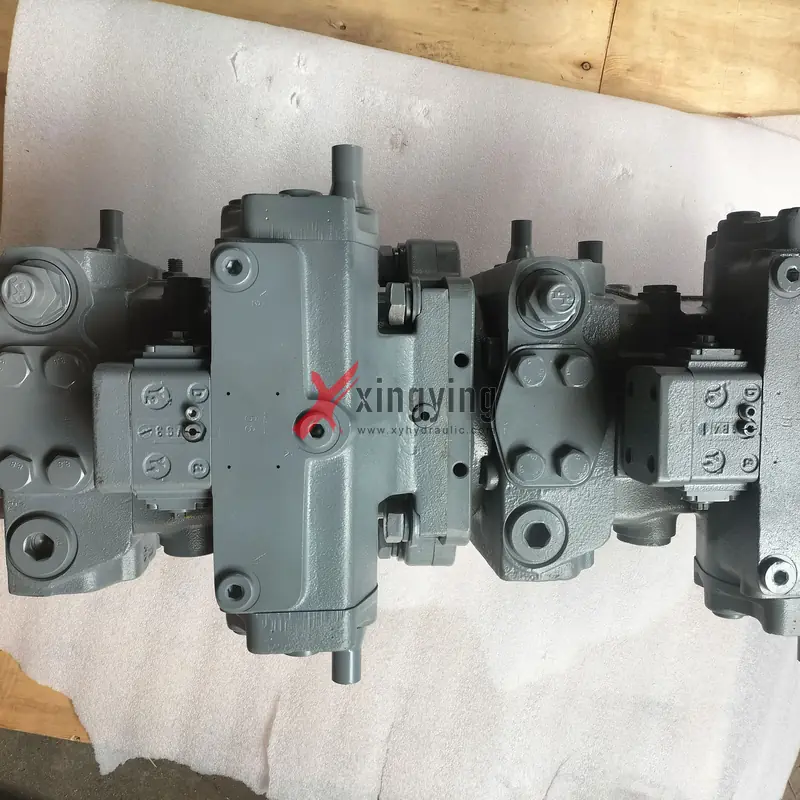

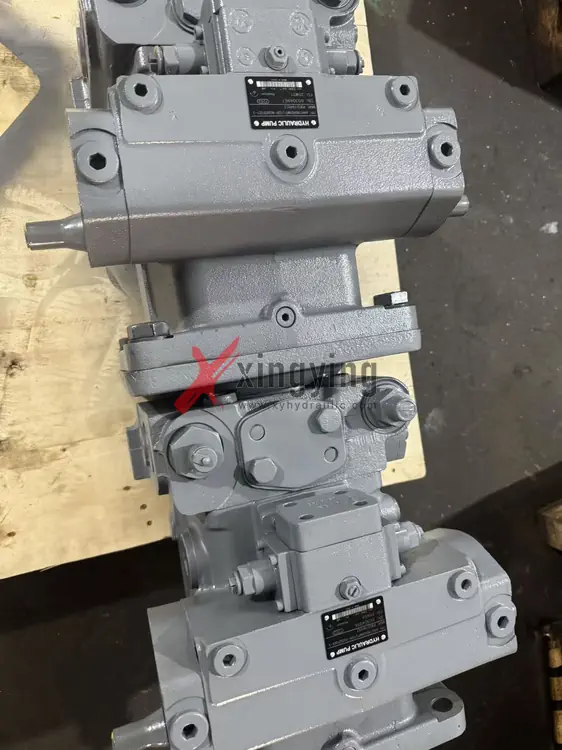

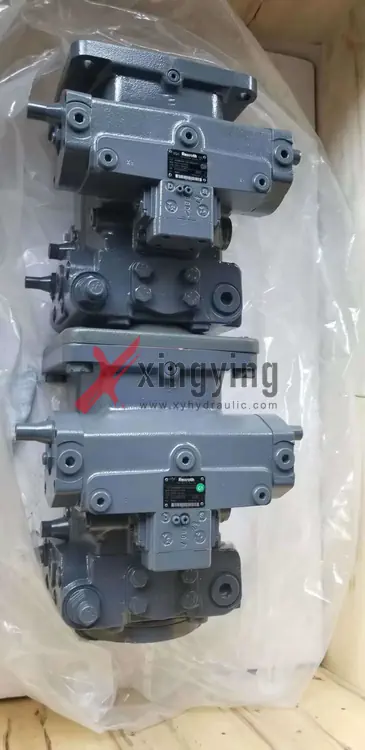

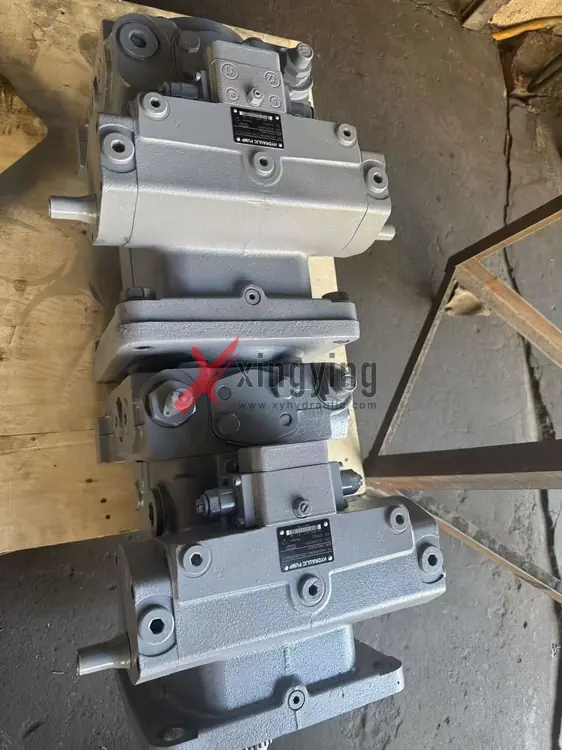

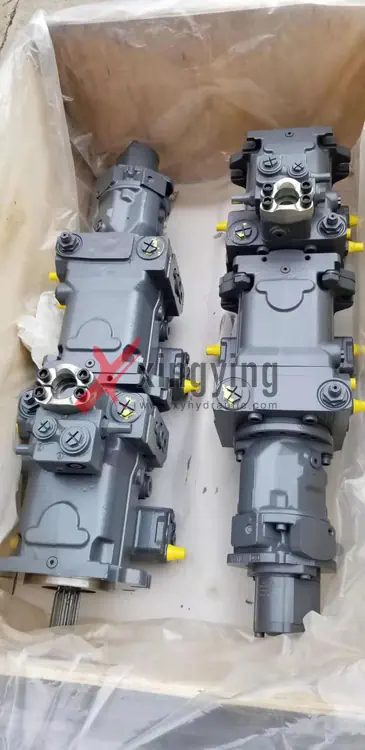

A4VG180 Rexroth Axial Piston Variable Pump A4VG
-
Place of Origin:Germany,United States
Model Number:A4VG180
Brand Name:Rexroth A4VG180 Replacement
Warranty:12 months
Condition:New
Delivery Time: 7-15days
Supply Ability: 10PCS in 7-10days
Origin:China
Minimum Order:1 Pieces
Sample:Contact us for free samples
Price:$722.35-$2466.53
- A4VG180 Rexroth Axial Piston Variable Pump A4VG A4VG125 Rexroth Axial Piston Variable Pump A4VG A4VG90 Rexroth Axial Piston Variable Pump A4VG A4VG28 40 56 71 90 125 180 250 EPO Rexroth Axial Piston Variable Pump A4VG Rexroth Axial Piston Variable Pump
Product Description
Rexroth A4VG180 oil pump Double pump hydraulic piston pump
Rexroth A4VG180 Hydraulic oil pump Piston Pump
It offers several key features for efficient and versatile operation:
Infinitely Variable Flow: Flow rate directly correlates with drive speed and pump displacement, allowing for smooth adjustments.
Wide Flow Range: The pump can deliver flow from zero to its maximum capacity by varying the swash plate angle.
Reversible Flow Direction: Tilting the swash plate beyond the neutral position seamlessly reverses the fluid flow direction.
Flexible Control Options: The pump supports multiple control methods (NV, DG, EZ, HD, HW, EP, DA) for compatibility with diverse control and regulation systems.
Internal System Protection: Two integrated Relief valves on the high-pressure side safeguard the hydrostatic transmission (pump and motor) against excessive loads. Notably, the high-pressure relief valve also functions as an oil filling valve.
Integrated Auxiliary Pump: An internal auxiliary pump serves as both a Charge Pump and a control pump, simplifying the system design.
Built-in Pressure Relief: A dedicated charging relief valve limits the maximum charging pressure.
Pressure Shut-off Valve: All models come equipped with an integrated pressure shut-off valve for additional system control.
Product Complete Model No.
Technical Data
Table of values (theoretical values, without efficiency and tolerances; values rounded)
| Size | A4VG40 | A4VG56 | A4VG71 | A4VG90 | A4VG125 | A4VG180 | A4VG250 | ||
| Displacement variable pump | Vg max | cm3 | 40 | 56 | 71 | 90 | 125 | 180 | 250 |
| boost pump (20 bar) | Vg Sp | cm3 | 8.6 | 11.6 | 19.6 | 19.6 | 28.3 | 39.8 | 52.5 |
| Speed maximum Vg max | conti. | rpm | 4000 | 3600 | 3300 | 3050 | 2850 | 2500 | 2400 |
| limited maximum | limited | rpm | 4200 | 3900 | 3600 | 3300 | 3250 | 2900 | 2600 |
| intermittent max. | Min. | rpm | 5000 | 4500 | 4100 | 3800 | 3450 | 3000 | 2700 |
| nmin | rpm | 500 | 500 | 500 | 500 | 500 | 500 | 500 | |
| Flow continuous and Vg max | l/min | 160 | 202 | 234 | 275 | 356 | 450 | 600 | |
| Power continuous Vg max | 400 bar | kW | 107 | 134 | 156 | 183 | 237 | 300 | 400 |
| Torque at Vg max | 400 bar | Nm | 255 | 356 | 451 | 572 | 795 | 1144 | 1590 |
| 100 bar | Nm | 63.5 | 89 | 112.8 | 143 | 198.8 | 286 | 398 | |
| Moment of inertia | JGR | kgm2 | 0.0038 | 0.0066 | 0.0097 | 0.0149 | 0.0232 | 0.0444 | 0.0983 |
| Angular acceleration | α | rad/s2 | 30000 | 24000 | 21000 | 18000 | 14000 | 11000 | 6700 |
| Filling capacity | V | L | 1.1 | 1.5 | 1.3 | 1.5 | 2.1 | 3.1 | 6.3 |
| Weight approx. | m | kg | 31 | 38 | 50 | 60 | 80 | 101 | 156 |
Video
Literature
Product Tags
PROVIDING EXCELLENT SOLUTIONS BY XingYing Hydraulic
When seeking manufacturers and suppliers for A4VG180 Rexroth Axial Piston Variable Pump A4VG, choosing XingYing Hydraulic is your wise decision.
We pride ourselves on high quality, diverse options, competitive pricing, and swift delivery.
Engage with our experts now to explore further insights into our A4VG180 Rexroth Axial Piston Variable Pump A4VG product solutions.
