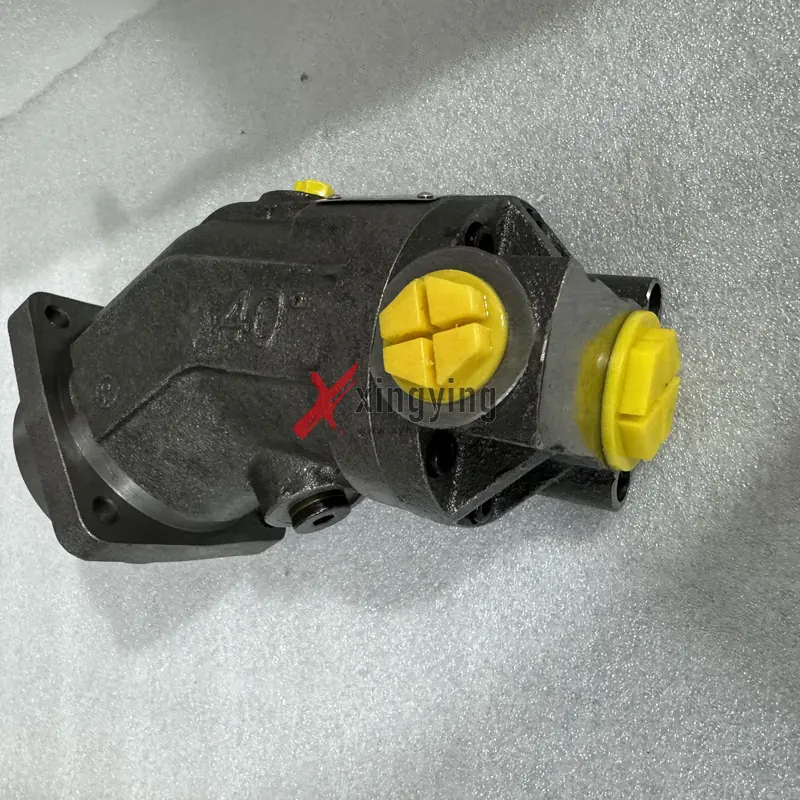

A2FO63 Rexroth Axial Piston Fixed Pump
-
Place of Origin:Germany,United States
Model Number: A2FO63
Brand Name:Replacement Rexroth A2FO
Pump Type:PISTON PUMP
Displacement: 18cc~140cc
Working pressure range:280bar~420bar
control mode:Pressure flow control
Material:Cast Iron
Condition:New
Manufacturer:Xingying Hydraulic
Warranty:1 Year
Minimum Order:1 Pieces
Origin:Ningbo,China
Sample:Contact us for free samples
Price:$270.67-$820.52
- A2FO63 Rexroth Axial Piston Fixed Pump A2FO45 Rexroth Axial Piston Fixed Pump A2FO32 Rexroth Axial Piston Fixed Pump A2FO23 Rexroth Axial Piston Fixed Pump A2FO16 Rexroth Axial Piston Fixed Pump
Product Description
Place of Origin:Germany,United States
Model Number: A2FO63
Brand Name:replacement Rexroth A2FO
Pump Type:Piston Pump
Displacement: 18cc~140cc
Working pressure range:280bar~420bar
control mode:Pressure flow control
Material:Cast Iron
Condition:New
Manufacturer:XingYing Hydraulic
Warranty:1 Year
Minimum Order:1 Pieces
Origin:Ningbo,China
Hydraulic Piston Variable Pump With Rexroth A2FO23 A2FO32 A2FO45 A2FO63 A2FO107 A2FM160 A2FM200 A2FM355 A2FM500 Piston motor
When seeking manufacturers and suppliers for A2FO63 Rexroth Axial Piston Fixed Pump, choosing XingYing Hydraulic is your wise decision.
| Size | NG | 5 | 10 | 12 | 16 | 23 | 28 | 32 | 45 | 56 | 63 | 80 | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Displacement geometric, per revolution | Vg | cm3 | 4.93 | 10.3 | 12 | 16 | 22.9 | 28.1 | 32 | 45.6 | 56.1 | 63 | 80.4 | |
| Speed maximum1) | nnom | rpm | 5600 | 3150 | 3150 | 3150 | 2500 | 2500 | 2500 | 2240 | 2000 | 2000 | 1800 | |
| n 2) max | rpm | 8000 | 6000 | 6000 | 6000 | 4750 | 4750 | 4750 | 4250 | 3750 | 3750 | 3350 | ||
| Flow at nnom | qV | L/min | 27.6 | 32 | 38 | 50 | 57 | 70 | 80 | 102 | 112 | 126 | 145 | |
| Power at | p = 350 bar | P | kW | 14.54) 19 | 22 | 29 | 33 | 41 | 47 | 60 | 65 | 74 | 84 | |
| p = 400 bar | P | kW | – | 22 | 25 | 34 | 38 | 47 | 53 | 68 | 75 | 84 | 96 | |
| Torque3) at Vg and | p = 350 bar | T | Nm | 24.74) | 57 | 67 | 89 | 128 | 157 | 178 | 254 | 313 | 351 | 448 |
| p = 400 bar | T | Nm | – | 66 | 76 | 102 | 146 | 179 | 204 | 290 | 357 | 401 | 512 | |
| Rotary stiffness | c | kNm/rad | 0.63 | 0.92 | 1.25 | 1.59 | 2.56 | 2.93 | 3.12 | 4.18 | 5.94 | 6.25 | 8.73 | |
| Moment of inertia for rotary group | JGR | kgm2 | 0.00006 0.0004 | 0.0004 | 0.0004 | 0.0012 | 0.0012 | 0.0012 | 0.0024 | 0.0042 | 0.0042 | 0.0072 | ||
| Maximum angular acceleration | | rad/s2 | 5000 | 5000 | 5000 | 5000 | 6500 | 6500 | 6500 | 14600 | 7500 | 7500 | 6000 | |
| Case volume | V | L | 0.17 | 0.17 | 0.17 | 0.20 | 0.20 | 0.20 | 0.33 | 0.45 | 0.45 | 0.55 | ||
| Mass (approx.) | m | kg | 2.5 | 6 | 6 | 6 | 9.5 | 9.5 | 9.5 | 13.5 | 18 | 18 | 23 | |
