A10VSO140DFLR-31L Rexroth Axial Piston Pump
-
Place of Origin:Germany
Model Number: A10VSO140DFLR-31L
Brand Name:Rexroth Replacement
Warranty:12 months
Condition:New
Price: On Qequest
Delivery Time: 7-15days
Supply Ability: 8PCS in 7-10days
Origin：China
Minimum Order：1 Pieces
Sample:Contact us for free samples
Price:$500-$2500
Product Description
Universal use medium pressure pump
Nominal size 18 … 100
Nominal pressure 280 bar
Maximum pressure 350 bar
Open circuit
Metric version
Rexroth Axial Piston Variable Pump A10VSO Features:
––Variable pump in axial piston swashplate design for hydrostatic
drives in an open circuit
––The flow is proportional to the drive speed and the displacement
––The flow can be steplessly varied by adjustment of the
swashplate angle.
––2 case drain ports
––Excellent suction characteristics
––Low noise level
––Long service life
––Axial and radial load capacity of drive shaft
––Favorable power/weight ratio
––Versatile controller range
––Short control time
––The through drive is suitable for adding gear pumps and axial
piston pumps up to the same size, i.e., 100% through drive.
Part No:
A10VSO18 Rexroth Axial Piston Pump
A10VSO100 Rexroth Axial Piston Pump
A10VSO71 Rexroth Axial Piston Pump
A10VSO45 Rexroth Axial Piston Pump
A10VSO28 Rexroth Axial Piston Pump
A10VSO140 Rexroth Axial Piston Pump
A10VSO31R-PSC62K01 Rexroth Axial Piston Pump
A10VSO140DFLR-31L Rexroth Axial Piston Pump

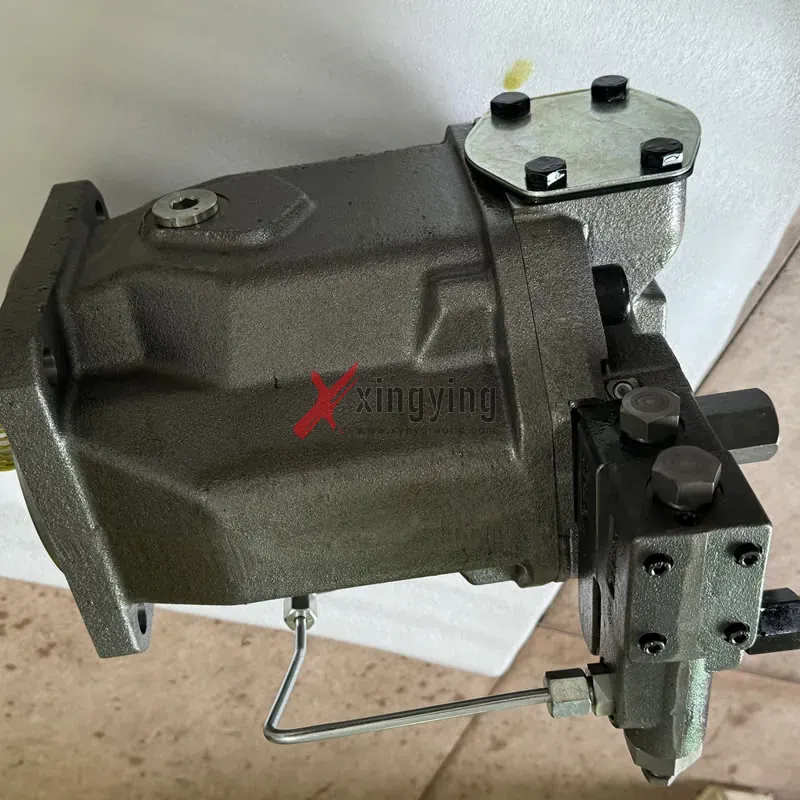

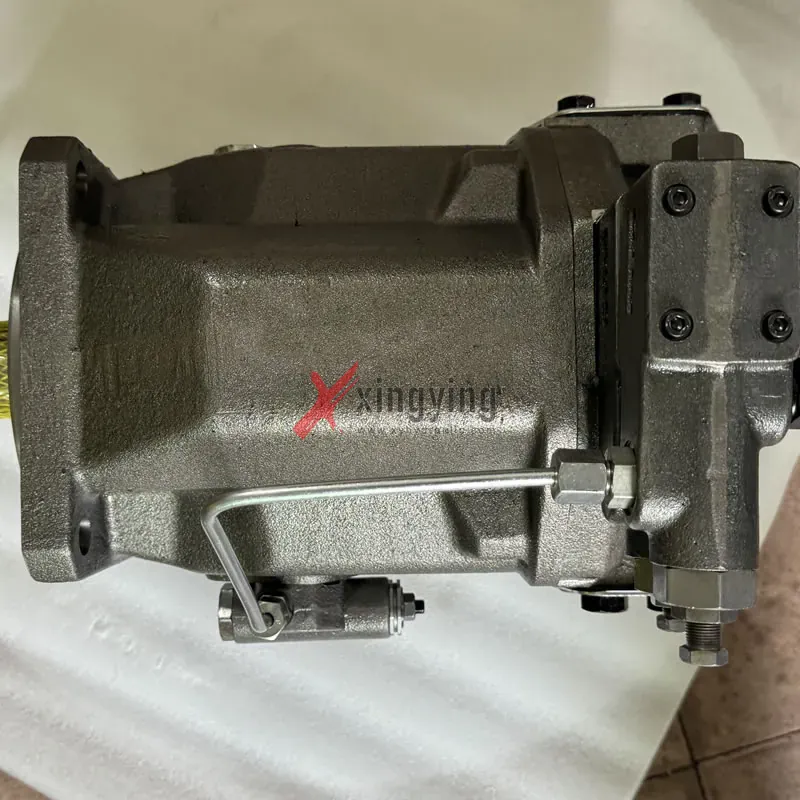

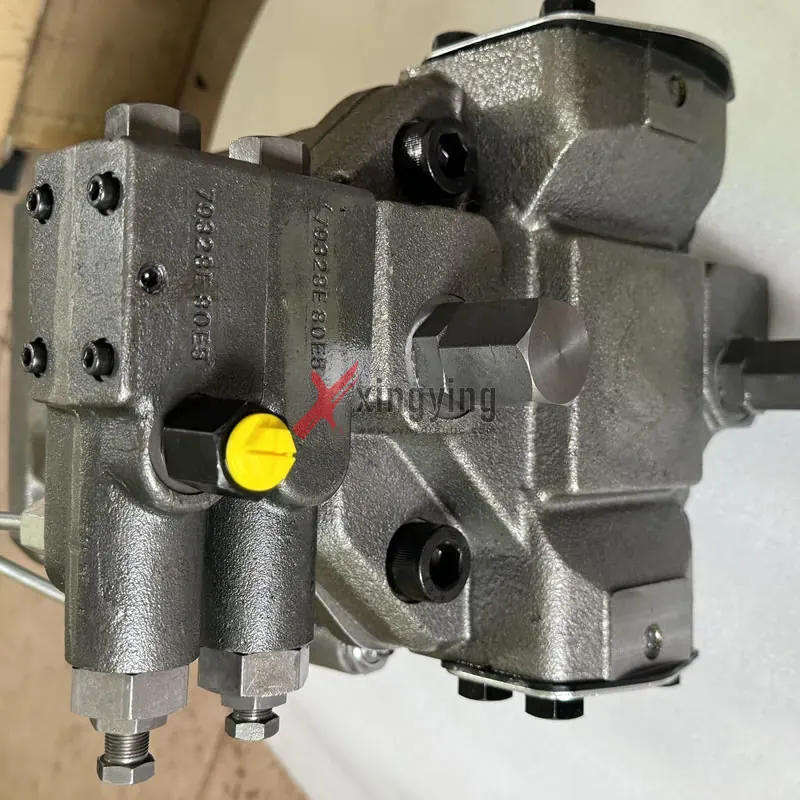

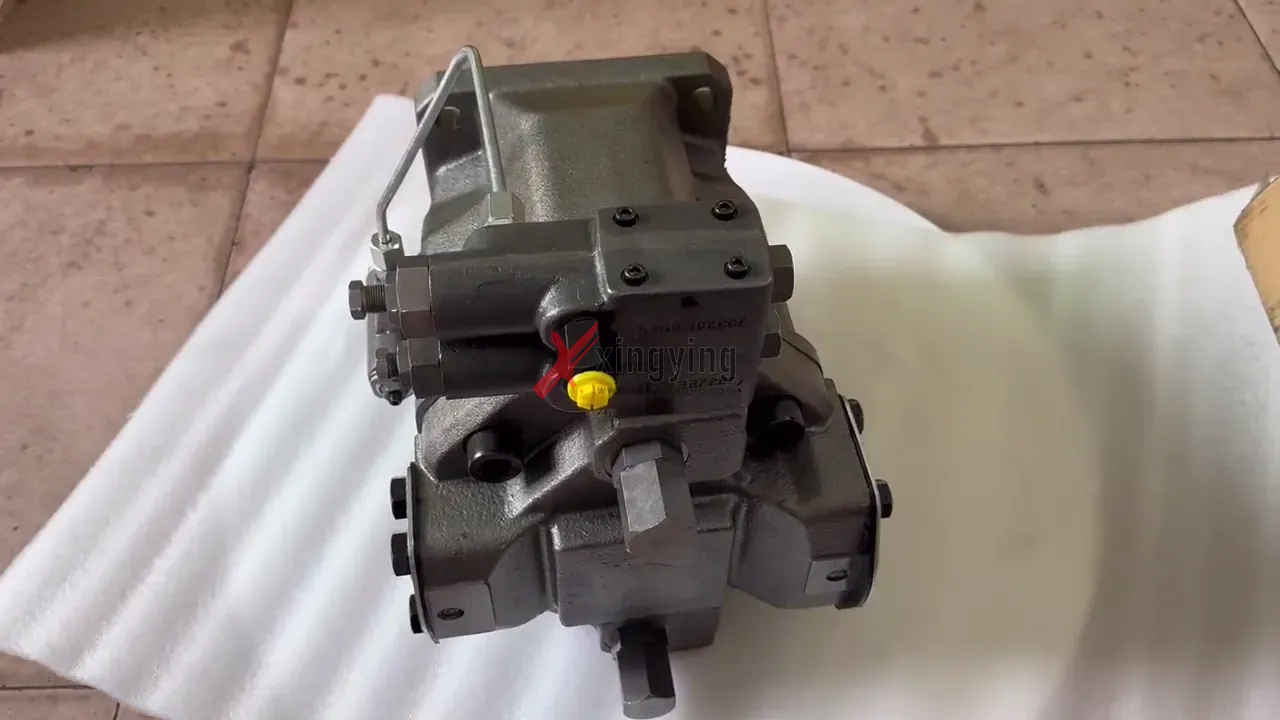

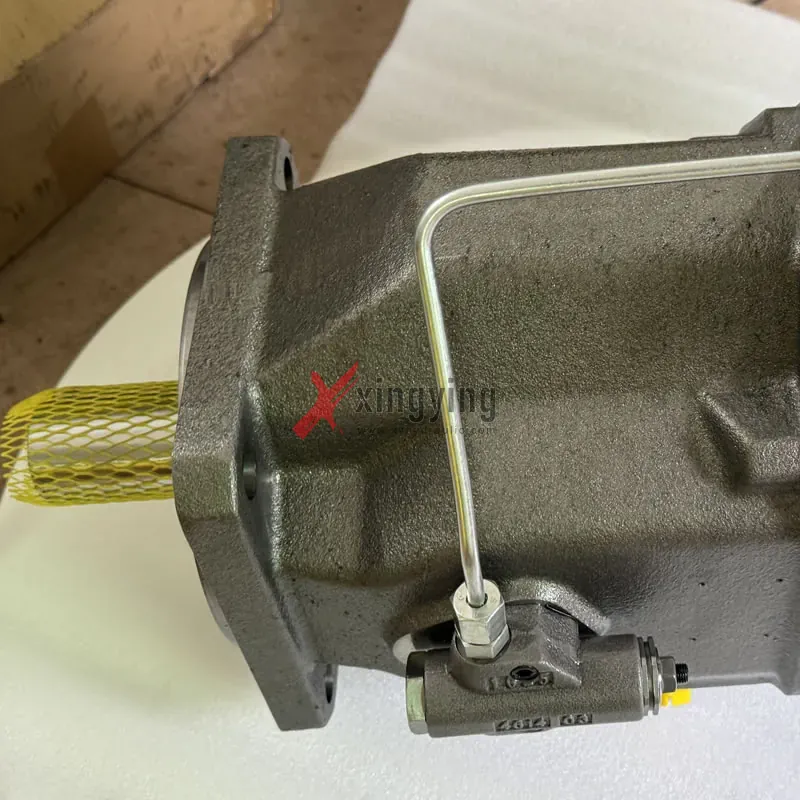

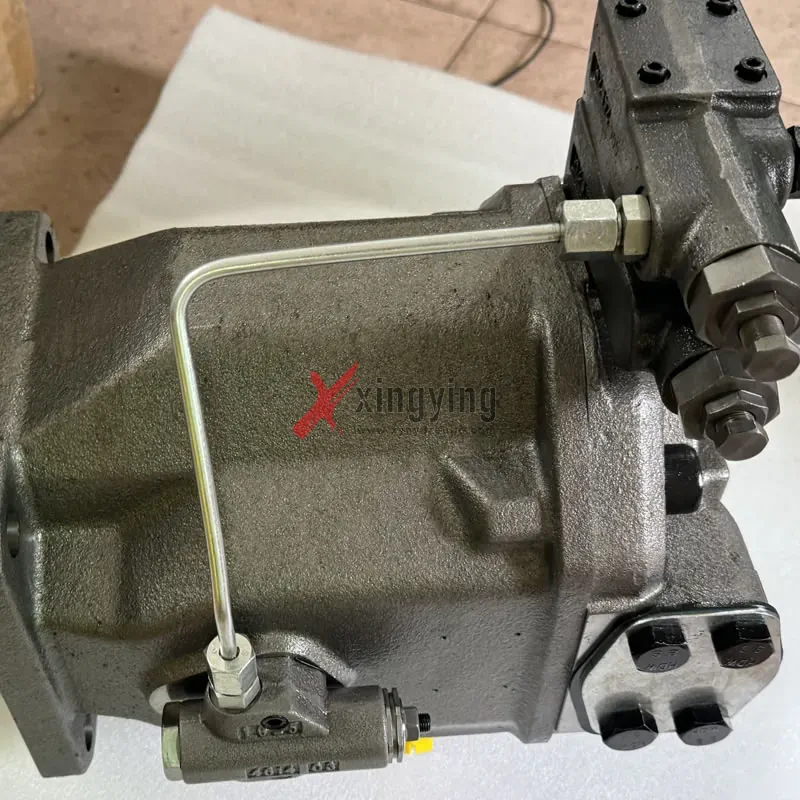

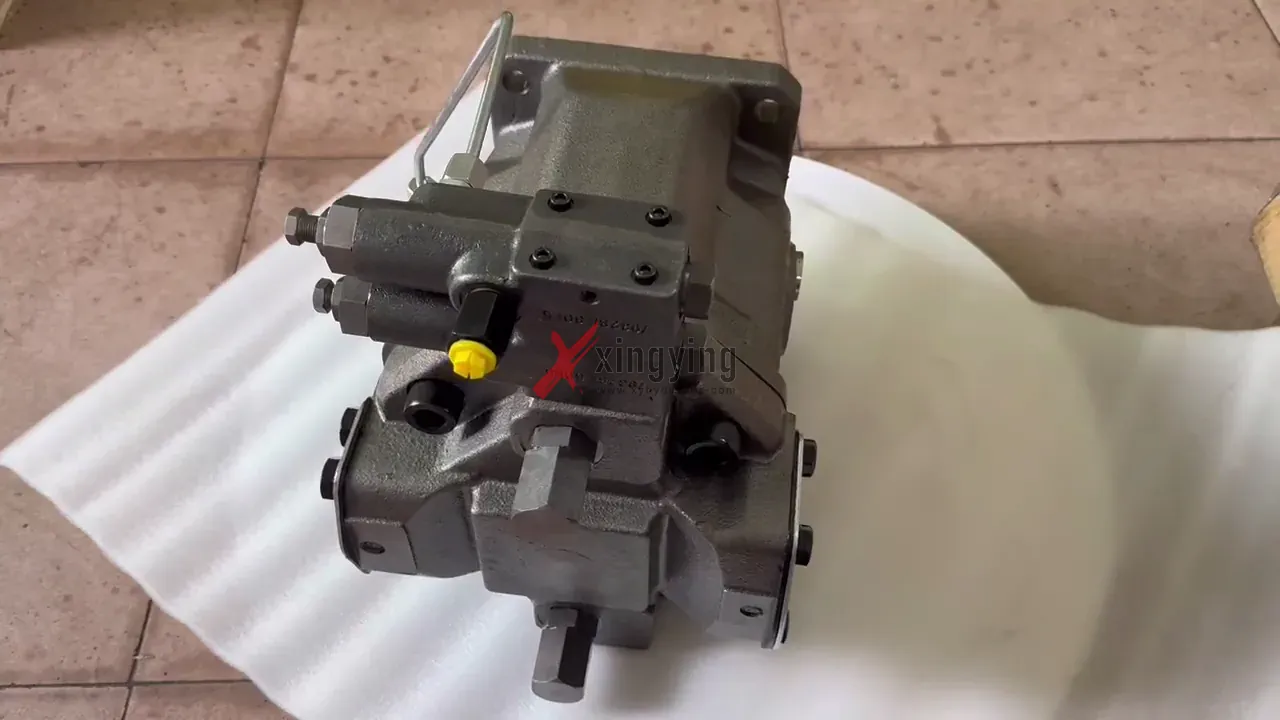

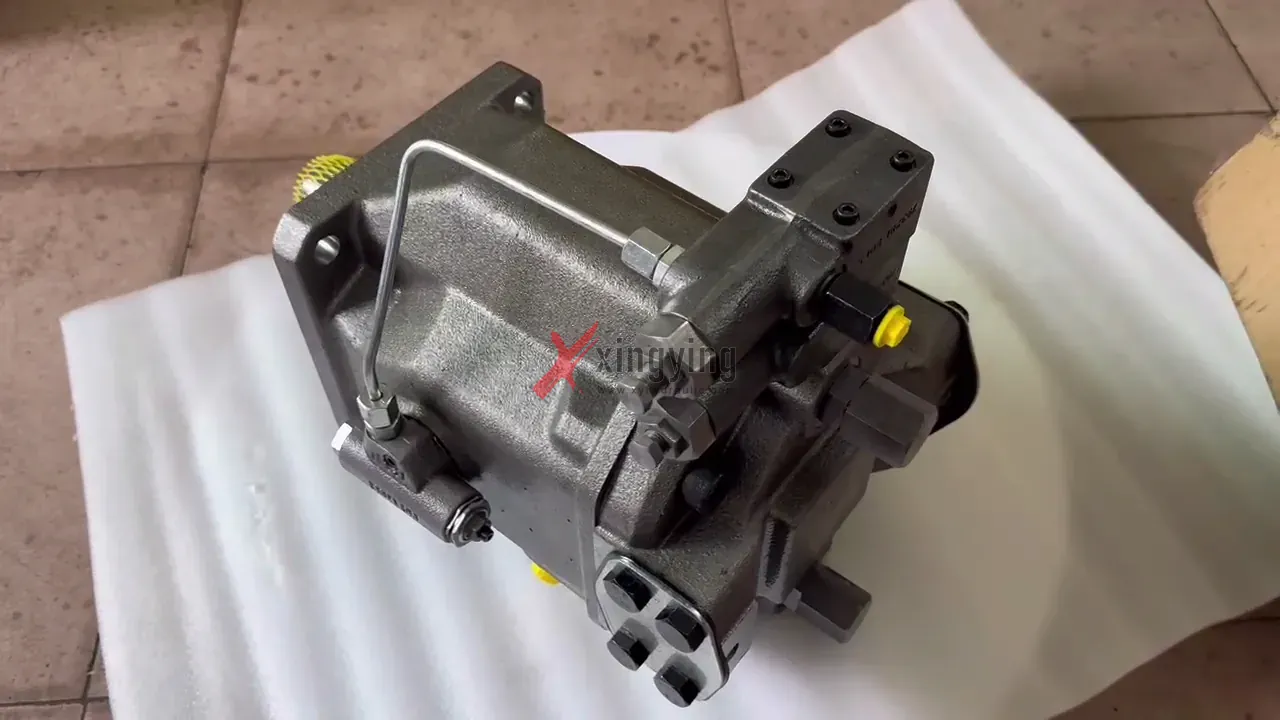

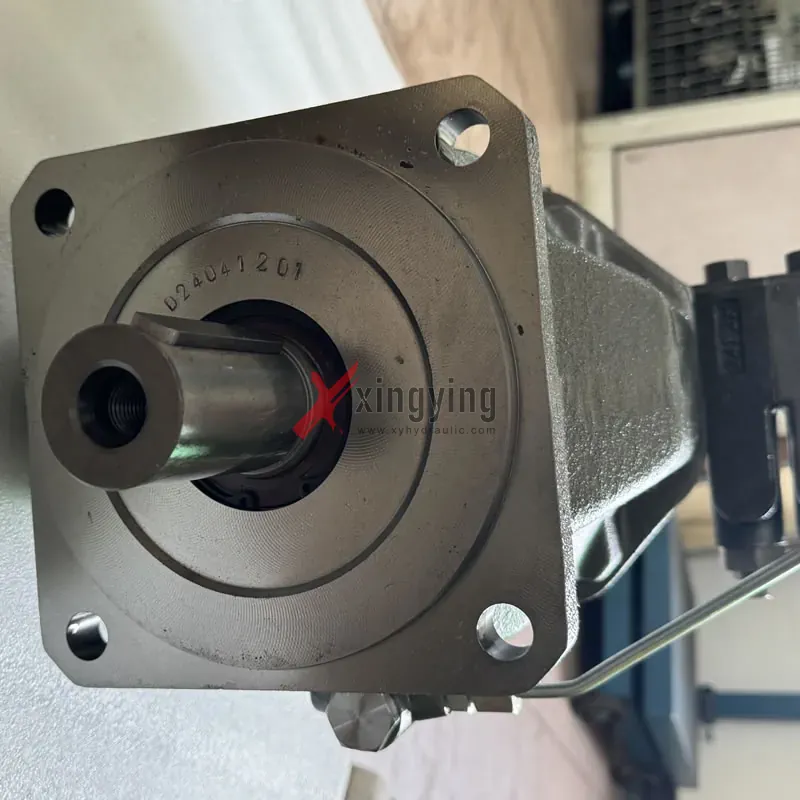

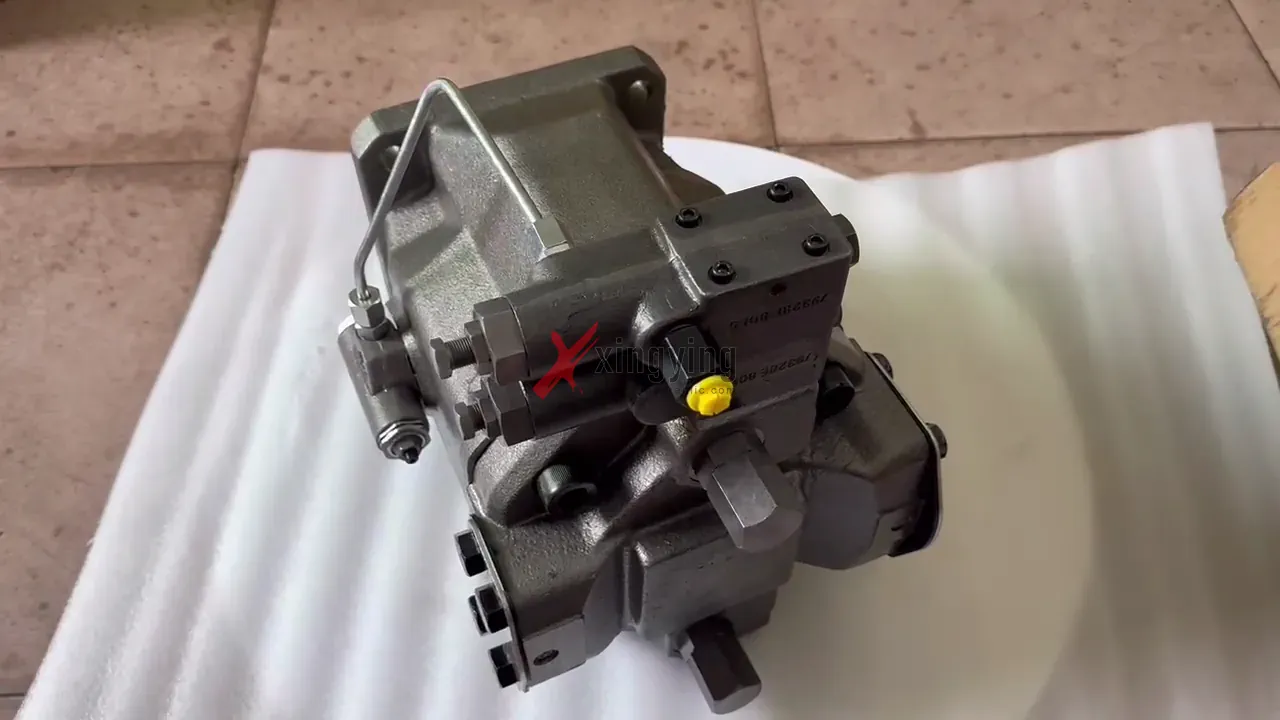

Product Image Gallery

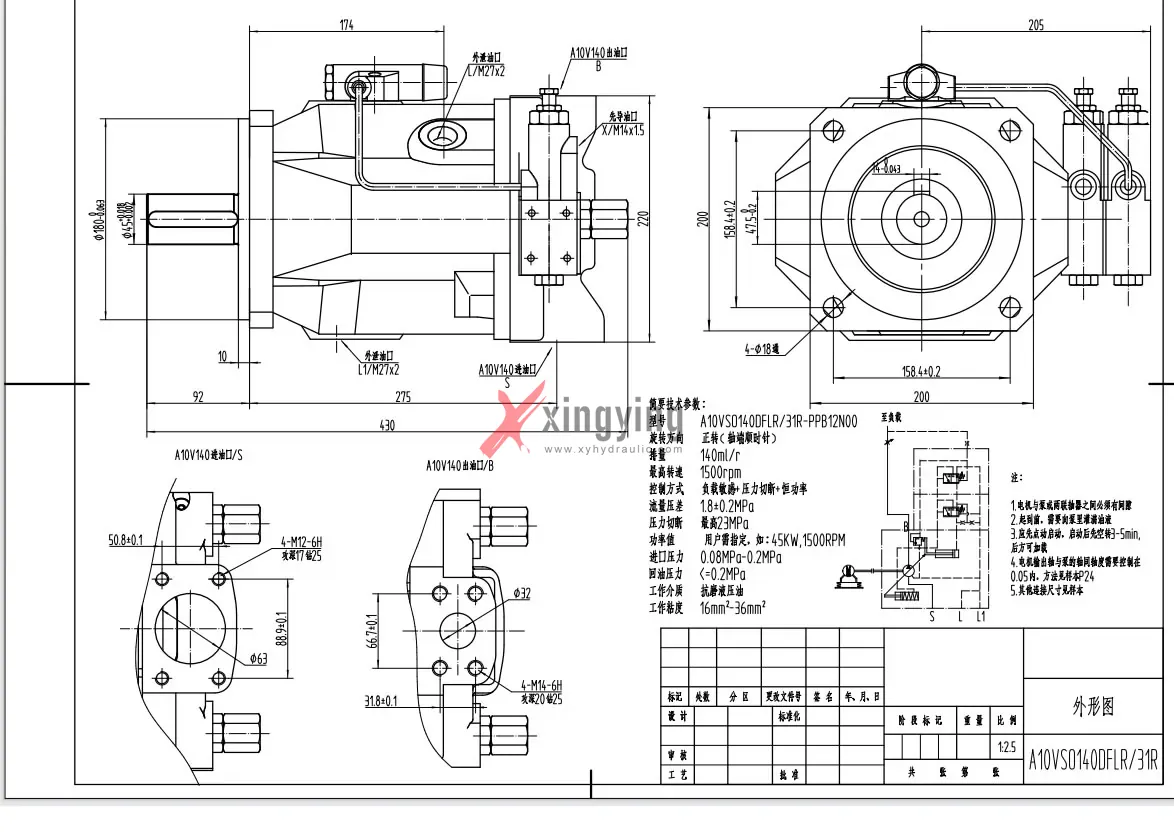

Product Complete Model No.
Rexroth piston hydraulic pump, A10V/A10VSO series, for engineering machinery, marine industry, etc.
Rexroth piston hydraulic pump, A10V/A10VSO series, for engineering machinery, marine industry, etc.
| Sizes | 16/18 | 28 | 45 | 71 | 100 | 140 | |||
| Displacement | Vg max | cm3 | 18 | 28 | 45 | 71 | 100 | 140 | |
| Max speed | nmax | rpm | 3300 | 3000 | 2600 | 2200 | 2000 | 1800 | |
| Max. flow | In nmax | qv | L/min | 59.4 | 84 | 117 | 156 | 200 | 252 |
| in 1500 r/min | 27 | 42 | 68 | 107 | 150 | 210 | |||
| (p=280bar) Max. power | in nmax | Pmax | Kw | 27.7 | 39 | 55 | 73 | 93 | 118 |
| in 1500 r/min | 12.6 | 20 | 32 | 50 | 70 | 98 | |||
| (p=280bar) Max. torque | in Vg max | Tmax | Nm | 80.1 | 125 | 200 | 316 | 445 | 623 |
| Weight | m | Kg | 12 | 15 | 21 | 33 | 45 | 60 |
